com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder Interface Reference

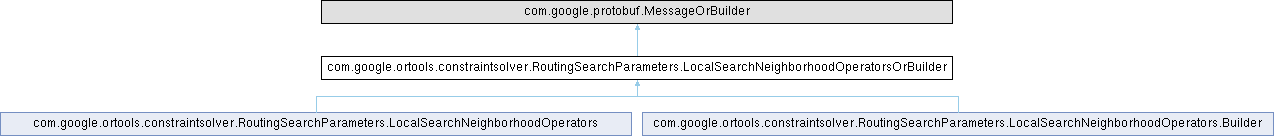

Inheritance diagram for com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder:

Public Member Functions
int	getUseRelocateValue ()
com.google.ortools.util.OptionalBoolean	getUseRelocate ()
int	getUseRelocatePairValue ()
com.google.ortools.util.OptionalBoolean	getUseRelocatePair ()
int	getUseLightRelocatePairValue ()
com.google.ortools.util.OptionalBoolean	getUseLightRelocatePair ()
int	getUseRelocateNeighborsValue ()
com.google.ortools.util.OptionalBoolean	getUseRelocateNeighbors ()
int	getUseRelocateSubtripValue ()
com.google.ortools.util.OptionalBoolean	getUseRelocateSubtrip ()
int	getUseExchangeValue ()
com.google.ortools.util.OptionalBoolean	getUseExchange ()
int	getUseExchangePairValue ()
com.google.ortools.util.OptionalBoolean	getUseExchangePair ()
int	getUseExchangeSubtripValue ()
com.google.ortools.util.OptionalBoolean	getUseExchangeSubtrip ()
int	getUseCrossValue ()
com.google.ortools.util.OptionalBoolean	getUseCross ()
int	getUseCrossExchangeValue ()
com.google.ortools.util.OptionalBoolean	getUseCrossExchange ()
int	getUseRelocateExpensiveChainValue ()
com.google.ortools.util.OptionalBoolean	getUseRelocateExpensiveChain ()
int	getUseTwoOptValue ()
com.google.ortools.util.OptionalBoolean	getUseTwoOpt ()
int	getUseOrOptValue ()
com.google.ortools.util.OptionalBoolean	getUseOrOpt ()
int	getUseLinKernighanValue ()
com.google.ortools.util.OptionalBoolean	getUseLinKernighan ()
int	getUseTspOptValue ()
com.google.ortools.util.OptionalBoolean	getUseTspOpt ()
int	getUseMakeActiveValue ()
com.google.ortools.util.OptionalBoolean	getUseMakeActive ()
int	getUseRelocateAndMakeActiveValue ()
com.google.ortools.util.OptionalBoolean	getUseRelocateAndMakeActive ()
int	getUseMakeInactiveValue ()
com.google.ortools.util.OptionalBoolean	getUseMakeInactive ()
int	getUseMakeChainInactiveValue ()
com.google.ortools.util.OptionalBoolean	getUseMakeChainInactive ()
int	getUseSwapActiveValue ()
com.google.ortools.util.OptionalBoolean	getUseSwapActive ()
int	getUseExtendedSwapActiveValue ()
com.google.ortools.util.OptionalBoolean	getUseExtendedSwapActive ()
int	getUseShortestPathSwapActiveValue ()
com.google.ortools.util.OptionalBoolean	getUseShortestPathSwapActive ()
int	getUseNodePairSwapActiveValue ()
com.google.ortools.util.OptionalBoolean	getUseNodePairSwapActive ()
int	getUsePathLnsValue ()
com.google.ortools.util.OptionalBoolean	getUsePathLns ()
int	getUseFullPathLnsValue ()
com.google.ortools.util.OptionalBoolean	getUseFullPathLns ()
int	getUseTspLnsValue ()
com.google.ortools.util.OptionalBoolean	getUseTspLns ()
int	getUseInactiveLnsValue ()
com.google.ortools.util.OptionalBoolean	getUseInactiveLns ()
int	getUseGlobalCheapestInsertionPathLnsValue ()
com.google.ortools.util.OptionalBoolean	getUseGlobalCheapestInsertionPathLns ()
int	getUseLocalCheapestInsertionPathLnsValue ()
com.google.ortools.util.OptionalBoolean	getUseLocalCheapestInsertionPathLns ()
int	getUseRelocatePathGlobalCheapestInsertionInsertUnperformedValue ()
com.google.ortools.util.OptionalBoolean	getUseRelocatePathGlobalCheapestInsertionInsertUnperformed ()
int	getUseGlobalCheapestInsertionExpensiveChainLnsValue ()
com.google.ortools.util.OptionalBoolean	getUseGlobalCheapestInsertionExpensiveChainLns ()
int	getUseLocalCheapestInsertionExpensiveChainLnsValue ()
com.google.ortools.util.OptionalBoolean	getUseLocalCheapestInsertionExpensiveChainLns ()
int	getUseGlobalCheapestInsertionCloseNodesLnsValue ()
com.google.ortools.util.OptionalBoolean	getUseGlobalCheapestInsertionCloseNodesLns ()
int	getUseLocalCheapestInsertionCloseNodesLnsValue ()
com.google.ortools.util.OptionalBoolean	getUseLocalCheapestInsertionCloseNodesLns ()

Detailed Description

Definition at line 356 of file RoutingSearchParameters.java.

Member Function Documentation

getUseCross()

com.google.ortools.util.OptionalBoolean com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseCross

(

)

Operator which cross exchanges the starting chains of 2 paths, including
exchanging the whole paths.
First and last nodes are not moved.
Possible neighbors for the paths 1 -> 2 -> 3 -> 4 -> 5 and 6 -> 7 -> 8
(where (1, 5) and (6, 8) are first and last nodes of the paths and can
therefore not be moved):
  1 -> [7] -> 3 -> 4 -> 5  6 -> [2] -> 8
  1 -> [7] -> 4 -> 5       6 -> [2 -> 3] -> 8
  1 -> [7] -> 5            6 -> [2 -> 3 -> 4] -> 8

.operations_research.OptionalBoolean use_cross = 5;

Returns

The useCross.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseCrossExchange()

com.google.ortools.util.OptionalBoolean com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseCrossExchange

(

)

Not implemented yet. TODO(b/68128619): Implement.

.operations_research.OptionalBoolean use_cross_exchange = 6;

Returns

The useCrossExchange.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseCrossExchangeValue()

int com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseCrossExchangeValue

(

)

Not implemented yet. TODO(b/68128619): Implement.

.operations_research.OptionalBoolean use_cross_exchange = 6;

Returns

The enum numeric value on the wire for useCrossExchange.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseCrossValue()

int com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseCrossValue

(

)

Operator which cross exchanges the starting chains of 2 paths, including
exchanging the whole paths.
First and last nodes are not moved.
Possible neighbors for the paths 1 -> 2 -> 3 -> 4 -> 5 and 6 -> 7 -> 8
(where (1, 5) and (6, 8) are first and last nodes of the paths and can
therefore not be moved):
  1 -> [7] -> 3 -> 4 -> 5  6 -> [2] -> 8
  1 -> [7] -> 4 -> 5       6 -> [2 -> 3] -> 8
  1 -> [7] -> 5            6 -> [2 -> 3 -> 4] -> 8

.operations_research.OptionalBoolean use_cross = 5;

Returns

The enum numeric value on the wire for useCross.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseExchange()

com.google.ortools.util.OptionalBoolean com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseExchange

(

)

Operator which exchanges the positions of two nodes.
Possible neighbors for the path 1 -> 2 -> 3 -> 4 -> 5
(where (1, 5) are first and last nodes of the path and can therefore not
be moved):
  1 -> [3] -> [2] ->  4  -> 5
  1 -> [4] ->  3  -> [2] -> 5
  1 ->  2  -> [4] -> [3] -> 5

.operations_research.OptionalBoolean use_exchange = 4;

Returns

The useExchange.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseExchangePair()

com.google.ortools.util.OptionalBoolean com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseExchangePair

(

)

Operator which exchanges the positions of two pair of nodes. Pairs
correspond to the pickup and delivery pairs defined in the routing model.
Possible neighbor for the paths
1 -> A -> B -> 2 -> 3 and 4 -> C -> D -> 5
(where (1, 3) and (4, 5) are first and last nodes of the paths and can
therefore not be moved, and (A, B) and (C,D) are pairs of nodes):
  1 -> [C] ->  [D] -> 2 -> 3, 4 -> [A] -> [B] -> 5

.operations_research.OptionalBoolean use_exchange_pair = 22;

Returns

The useExchangePair.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseExchangePairValue()

int com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseExchangePairValue

(

)

Operator which exchanges the positions of two pair of nodes. Pairs
correspond to the pickup and delivery pairs defined in the routing model.
Possible neighbor for the paths
1 -> A -> B -> 2 -> 3 and 4 -> C -> D -> 5
(where (1, 3) and (4, 5) are first and last nodes of the paths and can
therefore not be moved, and (A, B) and (C,D) are pairs of nodes):
  1 -> [C] ->  [D] -> 2 -> 3, 4 -> [A] -> [B] -> 5

.operations_research.OptionalBoolean use_exchange_pair = 22;

Returns

The enum numeric value on the wire for useExchangePair.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseExchangeSubtrip()

com.google.ortools.util.OptionalBoolean com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseExchangeSubtrip

(

)

Operator which exchanges subtrips associated to two pairs of nodes,
see use_relocate_subtrip for a definition of subtrips.

.operations_research.OptionalBoolean use_exchange_subtrip = 26;

Returns

The useExchangeSubtrip.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseExchangeSubtripValue()

int com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseExchangeSubtripValue

(

)

Operator which exchanges subtrips associated to two pairs of nodes,
see use_relocate_subtrip for a definition of subtrips.

.operations_research.OptionalBoolean use_exchange_subtrip = 26;

Returns

The enum numeric value on the wire for useExchangeSubtrip.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseExchangeValue()

int com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseExchangeValue

(

)

Operator which exchanges the positions of two nodes.
Possible neighbors for the path 1 -> 2 -> 3 -> 4 -> 5
(where (1, 5) are first and last nodes of the path and can therefore not
be moved):
  1 -> [3] -> [2] ->  4  -> 5
  1 -> [4] ->  3  -> [2] -> 5
  1 ->  2  -> [4] -> [3] -> 5

.operations_research.OptionalBoolean use_exchange = 4;

Returns

The enum numeric value on the wire for useExchange.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseExtendedSwapActive()

com.google.ortools.util.OptionalBoolean com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseExtendedSwapActive

(

)

Operator which makes an inactive node active and an active one inactive.
It is similar to SwapActiveOperator excepts that it tries to insert the
inactive node in all possible positions instead of just the position of
the node made inactive.
Possible neighbors for the path 1 -> 2 -> 3 -> 4 with 5 inactive
(where 1 and 4 are first and last nodes of the path) are:
  1 -> [5] ->  3  -> 4 with 2 inactive
  1 ->  3  -> [5] -> 4 with 2 inactive
  1 -> [5] ->  2  -> 4 with 3 inactive
  1 ->  2  -> [5] -> 4 with 3 inactive

.operations_research.OptionalBoolean use_extended_swap_active = 15;

Returns

The useExtendedSwapActive.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseExtendedSwapActiveValue()

int com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseExtendedSwapActiveValue

(

)

Operator which makes an inactive node active and an active one inactive.
It is similar to SwapActiveOperator excepts that it tries to insert the
inactive node in all possible positions instead of just the position of
the node made inactive.
Possible neighbors for the path 1 -> 2 -> 3 -> 4 with 5 inactive
(where 1 and 4 are first and last nodes of the path) are:
  1 -> [5] ->  3  -> 4 with 2 inactive
  1 ->  3  -> [5] -> 4 with 2 inactive
  1 -> [5] ->  2  -> 4 with 3 inactive
  1 ->  2  -> [5] -> 4 with 3 inactive

.operations_research.OptionalBoolean use_extended_swap_active = 15;

Returns

The enum numeric value on the wire for useExtendedSwapActive.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseFullPathLns()

com.google.ortools.util.OptionalBoolean com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseFullPathLns

(

)

Operator which relaxes one entire path and all inactive nodes.

.operations_research.OptionalBoolean use_full_path_lns = 17;

Returns

The useFullPathLns.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseFullPathLnsValue()

int com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseFullPathLnsValue

(

)

Operator which relaxes one entire path and all inactive nodes.

.operations_research.OptionalBoolean use_full_path_lns = 17;

Returns

The enum numeric value on the wire for useFullPathLns.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseGlobalCheapestInsertionCloseNodesLns()

com.google.ortools.util.OptionalBoolean com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseGlobalCheapestInsertionCloseNodesLns

(

)

The following operator makes a node and its
heuristic_close_nodes_lns_num_nodes closest neighbors unperformed along
with each of their corresponding performed pickup/delivery pairs, and
then reinserts them using the GlobalCheapestInsertion heuristic.

.operations_research.OptionalBoolean use_global_cheapest_insertion_close_nodes_lns = 31;

Returns

The useGlobalCheapestInsertionCloseNodesLns.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseGlobalCheapestInsertionCloseNodesLnsValue()

int com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseGlobalCheapestInsertionCloseNodesLnsValue

(

)

The following operator makes a node and its
heuristic_close_nodes_lns_num_nodes closest neighbors unperformed along
with each of their corresponding performed pickup/delivery pairs, and
then reinserts them using the GlobalCheapestInsertion heuristic.

.operations_research.OptionalBoolean use_global_cheapest_insertion_close_nodes_lns = 31;

Returns

The enum numeric value on the wire for useGlobalCheapestInsertionCloseNodesLns.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseGlobalCheapestInsertionExpensiveChainLns()

com.google.ortools.util.OptionalBoolean com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseGlobalCheapestInsertionExpensiveChainLns

(

)

This operator finds heuristic_expensive_chain_lns_num_arcs_to_consider
most expensive arcs on a route, makes the nodes in between pairs of these
expensive arcs unperformed, and reinserts them using the
GlobalCheapestInsertion heuristic.

.operations_research.OptionalBoolean use_global_cheapest_insertion_expensive_chain_lns = 29;

Returns

The useGlobalCheapestInsertionExpensiveChainLns.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseGlobalCheapestInsertionExpensiveChainLnsValue()

int com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseGlobalCheapestInsertionExpensiveChainLnsValue

(

)

This operator finds heuristic_expensive_chain_lns_num_arcs_to_consider
most expensive arcs on a route, makes the nodes in between pairs of these
expensive arcs unperformed, and reinserts them using the
GlobalCheapestInsertion heuristic.

.operations_research.OptionalBoolean use_global_cheapest_insertion_expensive_chain_lns = 29;

Returns

The enum numeric value on the wire for useGlobalCheapestInsertionExpensiveChainLns.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseGlobalCheapestInsertionPathLns()

com.google.ortools.util.OptionalBoolean com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseGlobalCheapestInsertionPathLns

(

)

--- LNS-like large neighborhood search operators using heuristics ---
Operator which makes all nodes on a route unperformed, and reinserts them
using the GlobalCheapestInsertion heuristic.

.operations_research.OptionalBoolean use_global_cheapest_insertion_path_lns = 27;

Returns

The useGlobalCheapestInsertionPathLns.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseGlobalCheapestInsertionPathLnsValue()

int com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseGlobalCheapestInsertionPathLnsValue

(

)

--- LNS-like large neighborhood search operators using heuristics ---
Operator which makes all nodes on a route unperformed, and reinserts them
using the GlobalCheapestInsertion heuristic.

.operations_research.OptionalBoolean use_global_cheapest_insertion_path_lns = 27;

Returns

The enum numeric value on the wire for useGlobalCheapestInsertionPathLns.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseInactiveLns()

com.google.ortools.util.OptionalBoolean com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseInactiveLns

(

)

Operator which relaxes all inactive nodes and one sub-chain of six
consecutive arcs. That way the path can be improved by inserting inactive
nodes or swapping arcs.

.operations_research.OptionalBoolean use_inactive_lns = 19;

Returns

The useInactiveLns.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseInactiveLnsValue()

int com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseInactiveLnsValue

(

)

Operator which relaxes all inactive nodes and one sub-chain of six
consecutive arcs. That way the path can be improved by inserting inactive
nodes or swapping arcs.

.operations_research.OptionalBoolean use_inactive_lns = 19;

Returns

The enum numeric value on the wire for useInactiveLns.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseLightRelocatePair()

com.google.ortools.util.OptionalBoolean com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseLightRelocatePair

(

)

Operator which moves a pair of pickup and delivery nodes after another
pair.
Possible neighbors for paths 1 -> A -> B -> 2, 3 -> C -> D -> 4 (where
(1, 2) and (3, 4) are first and last nodes of paths and can therefore not
be moved, and (A, B) and (C, D) are pair of nodes):
  1 -> 2, 3 -> C -> [A] -> D -> [B] -> 4
  1 -> A -> [C] -> B -> [D] -> 2, 3 -> 4

.operations_research.OptionalBoolean use_light_relocate_pair = 24;

Returns

The useLightRelocatePair.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseLightRelocatePairValue()

int com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseLightRelocatePairValue

(

)

Operator which moves a pair of pickup and delivery nodes after another
pair.
Possible neighbors for paths 1 -> A -> B -> 2, 3 -> C -> D -> 4 (where
(1, 2) and (3, 4) are first and last nodes of paths and can therefore not
be moved, and (A, B) and (C, D) are pair of nodes):
  1 -> 2, 3 -> C -> [A] -> D -> [B] -> 4
  1 -> A -> [C] -> B -> [D] -> 2, 3 -> 4

.operations_research.OptionalBoolean use_light_relocate_pair = 24;

Returns

The enum numeric value on the wire for useLightRelocatePair.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseLinKernighan()

com.google.ortools.util.OptionalBoolean com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseLinKernighan

(

)

Lin-Kernighan operator.
While the accumulated local gain is positive, performs a 2-OPT or a 3-OPT
move followed by a series of 2-OPT moves. Returns a neighbor for which
the global gain is positive.

.operations_research.OptionalBoolean use_lin_kernighan = 9;

Returns

The useLinKernighan.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseLinKernighanValue()

int com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseLinKernighanValue

(

)

Lin-Kernighan operator.
While the accumulated local gain is positive, performs a 2-OPT or a 3-OPT
move followed by a series of 2-OPT moves. Returns a neighbor for which
the global gain is positive.

.operations_research.OptionalBoolean use_lin_kernighan = 9;

Returns

The enum numeric value on the wire for useLinKernighan.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseLocalCheapestInsertionCloseNodesLns()

com.google.ortools.util.OptionalBoolean com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseLocalCheapestInsertionCloseNodesLns

(

)

Same as above, but insertion positions for nodes are determined by the
LocalCheapestInsertion heuristic.

.operations_research.OptionalBoolean use_local_cheapest_insertion_close_nodes_lns = 32;

Returns

The useLocalCheapestInsertionCloseNodesLns.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseLocalCheapestInsertionCloseNodesLnsValue()

int com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseLocalCheapestInsertionCloseNodesLnsValue

(

)

Same as above, but insertion positions for nodes are determined by the
LocalCheapestInsertion heuristic.

.operations_research.OptionalBoolean use_local_cheapest_insertion_close_nodes_lns = 32;

Returns

The enum numeric value on the wire for useLocalCheapestInsertionCloseNodesLns.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseLocalCheapestInsertionExpensiveChainLns()

com.google.ortools.util.OptionalBoolean com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseLocalCheapestInsertionExpensiveChainLns

(

)

Same as above but using LocalCheapestInsertion as a heuristic for
insertion.

.operations_research.OptionalBoolean use_local_cheapest_insertion_expensive_chain_lns = 30;

Returns

The useLocalCheapestInsertionExpensiveChainLns.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseLocalCheapestInsertionExpensiveChainLnsValue()

int com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseLocalCheapestInsertionExpensiveChainLnsValue

(

)

Same as above but using LocalCheapestInsertion as a heuristic for
insertion.

.operations_research.OptionalBoolean use_local_cheapest_insertion_expensive_chain_lns = 30;

Returns

The enum numeric value on the wire for useLocalCheapestInsertionExpensiveChainLns.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseLocalCheapestInsertionPathLns()

com.google.ortools.util.OptionalBoolean com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseLocalCheapestInsertionPathLns

(

)

Same as above but using LocalCheapestInsertion as a heuristic.

.operations_research.OptionalBoolean use_local_cheapest_insertion_path_lns = 28;

Returns

The useLocalCheapestInsertionPathLns.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseLocalCheapestInsertionPathLnsValue()

int com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseLocalCheapestInsertionPathLnsValue

(

)

Same as above but using LocalCheapestInsertion as a heuristic.

.operations_research.OptionalBoolean use_local_cheapest_insertion_path_lns = 28;

Returns

The enum numeric value on the wire for useLocalCheapestInsertionPathLns.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseMakeActive()

com.google.ortools.util.OptionalBoolean com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseMakeActive

(

)

--- Operators on inactive nodes ---
Operator which inserts an inactive node into a path.
Possible neighbors for the path 1 -> 2 -> 3 -> 4 with 5 inactive
(where 1 and 4 are first and last nodes of the path) are:
  1 -> [5] ->  2  ->  3  -> 4
  1 ->  2  -> [5] ->  3  -> 4
  1 ->  2  ->  3  -> [5] -> 4

.operations_research.OptionalBoolean use_make_active = 11;

Returns

The useMakeActive.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseMakeActiveValue()

int com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseMakeActiveValue

(

)

--- Operators on inactive nodes ---
Operator which inserts an inactive node into a path.
Possible neighbors for the path 1 -> 2 -> 3 -> 4 with 5 inactive
(where 1 and 4 are first and last nodes of the path) are:
  1 -> [5] ->  2  ->  3  -> 4
  1 ->  2  -> [5] ->  3  -> 4
  1 ->  2  ->  3  -> [5] -> 4

.operations_research.OptionalBoolean use_make_active = 11;

Returns

The enum numeric value on the wire for useMakeActive.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseMakeChainInactive()

com.google.ortools.util.OptionalBoolean com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseMakeChainInactive

(

)

Operator which makes a "chain" of path nodes inactive.
Possible neighbors for the path 1 -> 2 -> 3 -> 4 (where 1 and 4 are first
and last nodes of the path) are:
  1 -> 3 -> 4 with 2 inactive
  1 -> 2 -> 4 with 3 inactive
  1 -> 4 with 2 and 3 inactive

.operations_research.OptionalBoolean use_make_chain_inactive = 13;

Returns

The useMakeChainInactive.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseMakeChainInactiveValue()

int com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseMakeChainInactiveValue

(

)

Operator which makes a "chain" of path nodes inactive.
Possible neighbors for the path 1 -> 2 -> 3 -> 4 (where 1 and 4 are first
and last nodes of the path) are:
  1 -> 3 -> 4 with 2 inactive
  1 -> 2 -> 4 with 3 inactive
  1 -> 4 with 2 and 3 inactive

.operations_research.OptionalBoolean use_make_chain_inactive = 13;

Returns

The enum numeric value on the wire for useMakeChainInactive.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseMakeInactive()

com.google.ortools.util.OptionalBoolean com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseMakeInactive

(

)

Operator which makes path nodes inactive.
Possible neighbors for the path 1 -> 2 -> 3 -> 4 (where 1 and 4 are first
and last nodes of the path) are:
  1 -> 3 -> 4 with 2 inactive
  1 -> 2 -> 4 with 3 inactive

.operations_research.OptionalBoolean use_make_inactive = 12;

Returns

The useMakeInactive.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseMakeInactiveValue()

int com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseMakeInactiveValue

(

)

Operator which makes path nodes inactive.
Possible neighbors for the path 1 -> 2 -> 3 -> 4 (where 1 and 4 are first
and last nodes of the path) are:
  1 -> 3 -> 4 with 2 inactive
  1 -> 2 -> 4 with 3 inactive

.operations_research.OptionalBoolean use_make_inactive = 12;

Returns

The enum numeric value on the wire for useMakeInactive.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseNodePairSwapActive()

com.google.ortools.util.OptionalBoolean com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseNodePairSwapActive

(

)

Operator which makes an inactive node active and an active pair of nodes
inactive OR makes an inactive pair of nodes active and an active node
inactive.
Possible neighbors for the path 1 -> 2 -> 3 -> 4 with 5 inactive
(where 1 and 4 are first and last nodes of the path and (2,3) is a pair
of nodes) are:
  1 -> [5] -> 4 with (2,3) inactive
Possible neighbors for the path 1 -> 2 -> 3 with (4,5) inactive
(where 1 and 3 are first and last nodes of the path and (4,5) is a pair
of nodes) are:
  1 -> [4] -> [5] -> 3 with 2 inactive

.operations_research.OptionalBoolean use_node_pair_swap_active = 20;

Returns

The useNodePairSwapActive.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseNodePairSwapActiveValue()

int com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseNodePairSwapActiveValue

(

)

Operator which makes an inactive node active and an active pair of nodes
inactive OR makes an inactive pair of nodes active and an active node
inactive.
Possible neighbors for the path 1 -> 2 -> 3 -> 4 with 5 inactive
(where 1 and 4 are first and last nodes of the path and (2,3) is a pair
of nodes) are:
  1 -> [5] -> 4 with (2,3) inactive
Possible neighbors for the path 1 -> 2 -> 3 with (4,5) inactive
(where 1 and 3 are first and last nodes of the path and (4,5) is a pair
of nodes) are:
  1 -> [4] -> [5] -> 3 with 2 inactive

.operations_research.OptionalBoolean use_node_pair_swap_active = 20;

Returns

The enum numeric value on the wire for useNodePairSwapActive.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseOrOpt()

com.google.ortools.util.OptionalBoolean com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseOrOpt

(

)

Operator which moves sub-chains of a path of length 1, 2 and 3 to another
position in the same path.
When the length of the sub-chain is 1, the operator simply moves a node
to another position.
Possible neighbors for the path 1 -> 2 -> 3 -> 4 -> 5, for a sub-chain
length of 2 (where (1, 5) are first and last nodes of the path and can
therefore not be moved):
  1 ->  4 -> [2 -> 3] -> 5
  1 -> [3 -> 4] -> 2  -> 5
The OR_OPT operator is a limited version of 3-Opt (breaks 3 arcs on a
path).

.operations_research.OptionalBoolean use_or_opt = 8;

Returns

The useOrOpt.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseOrOptValue()

int com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseOrOptValue

(

)

Operator which moves sub-chains of a path of length 1, 2 and 3 to another
position in the same path.
When the length of the sub-chain is 1, the operator simply moves a node
to another position.
Possible neighbors for the path 1 -> 2 -> 3 -> 4 -> 5, for a sub-chain
length of 2 (where (1, 5) are first and last nodes of the path and can
therefore not be moved):
  1 ->  4 -> [2 -> 3] -> 5
  1 -> [3 -> 4] -> 2  -> 5
The OR_OPT operator is a limited version of 3-Opt (breaks 3 arcs on a
path).

.operations_research.OptionalBoolean use_or_opt = 8;

Returns

The enum numeric value on the wire for useOrOpt.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUsePathLns()

com.google.ortools.util.OptionalBoolean com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUsePathLns

(

)

--- Large neighborhood search operators ---
Operator which relaxes two sub-chains of three consecutive arcs each.
Each sub-chain is defined by a start node and the next three arcs. Those
six arcs are relaxed to build a new neighbor.
PATH_LNS explores all possible pairs of starting nodes and so defines
n^2 neighbors, n being the number of nodes.
Note that the two sub-chains can be part of the same path; they even may
overlap.

.operations_research.OptionalBoolean use_path_lns = 16;

Returns

The usePathLns.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUsePathLnsValue()

int com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUsePathLnsValue

(

)

--- Large neighborhood search operators ---
Operator which relaxes two sub-chains of three consecutive arcs each.
Each sub-chain is defined by a start node and the next three arcs. Those
six arcs are relaxed to build a new neighbor.
PATH_LNS explores all possible pairs of starting nodes and so defines
n^2 neighbors, n being the number of nodes.
Note that the two sub-chains can be part of the same path; they even may
overlap.

.operations_research.OptionalBoolean use_path_lns = 16;

Returns

The enum numeric value on the wire for usePathLns.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseRelocate()

com.google.ortools.util.OptionalBoolean com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseRelocate

(

)

--- Inter-route operators ---
Operator which moves a single node to another position.
Possible neighbors for the path 1 -> 2 -> 3 -> 4 -> 5
(where (1, 5) are first and last nodes of the path and can therefore not
be moved):
  1 ->  3  -> [2] ->  4  -> 5
  1 ->  3  ->  4  -> [2] -> 5
  1 ->  2  ->  4  -> [3] -> 5
  1 -> [4] ->  2  ->  3  -> 5

.operations_research.OptionalBoolean use_relocate = 1;

Returns

The useRelocate.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseRelocateAndMakeActive()

com.google.ortools.util.OptionalBoolean com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseRelocateAndMakeActive

(

)

Operator which relocates a node while making an inactive one active.
As of 3/2017, the operator is limited to two kinds of moves:
- Relocating a node and replacing it by an inactive node.
  Possible neighbor for path 1 -> 5, 2 -> 3 -> 6 and 4 inactive
  (where 1,2 and 5,6 are first and last nodes of paths) is:
  1 -> 3 -> 5, 2 -> 4 -> 6.
- Relocating a node and inserting an inactive node next to it.
  Possible neighbor for path 1 -> 5, 2 -> 3 -> 6 and 4 inactive
  (where 1,2 and 5,6 are first and last nodes of paths) is:
  1 -> 4 -> 3 -> 5, 2 -> 6.

.operations_research.OptionalBoolean use_relocate_and_make_active = 21;

Returns

The useRelocateAndMakeActive.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseRelocateAndMakeActiveValue()

int com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseRelocateAndMakeActiveValue

(

)

Operator which relocates a node while making an inactive one active.
As of 3/2017, the operator is limited to two kinds of moves:
- Relocating a node and replacing it by an inactive node.
  Possible neighbor for path 1 -> 5, 2 -> 3 -> 6 and 4 inactive
  (where 1,2 and 5,6 are first and last nodes of paths) is:
  1 -> 3 -> 5, 2 -> 4 -> 6.
- Relocating a node and inserting an inactive node next to it.
  Possible neighbor for path 1 -> 5, 2 -> 3 -> 6 and 4 inactive
  (where 1,2 and 5,6 are first and last nodes of paths) is:
  1 -> 4 -> 3 -> 5, 2 -> 6.

.operations_research.OptionalBoolean use_relocate_and_make_active = 21;

Returns

The enum numeric value on the wire for useRelocateAndMakeActive.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseRelocateExpensiveChain()

com.google.ortools.util.OptionalBoolean com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseRelocateExpensiveChain

(

)

Operator which detects the relocate_expensive_chain_num_arcs_to_consider
most expensive arcs on a path, and moves the chain resulting from cutting
pairs of arcs among these to another position.
Possible neighbors for paths 1 -> 2 (empty) and
3 -> A ------> B --> C -----> D -> 4 (where A -> B and C -> D are the 2
most expensive arcs, and the chain resulting from breaking them is
B -> C):
  1 -> [B -> C] -> 2     3 -> A -> D -> 4
  1 -> 2      3 -> [B -> C] -> A -> D -> 4
  1 -> 2      3 -> A -> D -> [B -> C] -> 4

.operations_research.OptionalBoolean use_relocate_expensive_chain = 23;

Returns

The useRelocateExpensiveChain.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseRelocateExpensiveChainValue()

int com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseRelocateExpensiveChainValue

(

)

Operator which detects the relocate_expensive_chain_num_arcs_to_consider
most expensive arcs on a path, and moves the chain resulting from cutting
pairs of arcs among these to another position.
Possible neighbors for paths 1 -> 2 (empty) and
3 -> A ------> B --> C -----> D -> 4 (where A -> B and C -> D are the 2
most expensive arcs, and the chain resulting from breaking them is
B -> C):
  1 -> [B -> C] -> 2     3 -> A -> D -> 4
  1 -> 2      3 -> [B -> C] -> A -> D -> 4
  1 -> 2      3 -> A -> D -> [B -> C] -> 4

.operations_research.OptionalBoolean use_relocate_expensive_chain = 23;

Returns

The enum numeric value on the wire for useRelocateExpensiveChain.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseRelocateNeighbors()

com.google.ortools.util.OptionalBoolean com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseRelocateNeighbors

(

)

Relocate neighborhood which moves chains of neighbors.
The operator starts by relocating a node n after a node m, then continues
moving nodes which were after n as long as the "cost" added is less than
the "cost" of the arc (m, n). If the new chain doesn't respect the domain
of next variables, it will try reordering the nodes until it finds a
valid path.
Possible neighbors for path 1 -> A -> B -> C -> D -> E -> 2 (where (1, 2)
are first and last nodes of the path and can therefore not be moved, A
must be performed before B, and A, D and E are located at the same
place):
1 -> A -> C -> [B] -> D -> E -> 2
1 -> A -> C -> D -> [B] -> E -> 2
1 -> A -> C -> D -> E -> [B] -> 2
1 -> A -> B -> D -> [C] -> E -> 2
1 -> A -> B -> D -> E -> [C] -> 2
1 -> A -> [D] -> [E] -> B -> C -> 2
1 -> A -> B -> [D] -> [E] ->  C -> 2
1 -> A -> [E] -> B -> C -> D -> 2
1 -> A -> B -> [E] -> C -> D -> 2
1 -> A -> B -> C -> [E] -> D -> 2
This operator is extremely useful to move chains of nodes which are
located at the same place (for instance nodes part of a same stop).

.operations_research.OptionalBoolean use_relocate_neighbors = 3;

Returns

The useRelocateNeighbors.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseRelocateNeighborsValue()

int com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseRelocateNeighborsValue

(

)

Relocate neighborhood which moves chains of neighbors.
The operator starts by relocating a node n after a node m, then continues
moving nodes which were after n as long as the "cost" added is less than
the "cost" of the arc (m, n). If the new chain doesn't respect the domain
of next variables, it will try reordering the nodes until it finds a
valid path.
Possible neighbors for path 1 -> A -> B -> C -> D -> E -> 2 (where (1, 2)
are first and last nodes of the path and can therefore not be moved, A
must be performed before B, and A, D and E are located at the same
place):
1 -> A -> C -> [B] -> D -> E -> 2
1 -> A -> C -> D -> [B] -> E -> 2
1 -> A -> C -> D -> E -> [B] -> 2
1 -> A -> B -> D -> [C] -> E -> 2
1 -> A -> B -> D -> E -> [C] -> 2
1 -> A -> [D] -> [E] -> B -> C -> 2
1 -> A -> B -> [D] -> [E] ->  C -> 2
1 -> A -> [E] -> B -> C -> D -> 2
1 -> A -> B -> [E] -> C -> D -> 2
1 -> A -> B -> C -> [E] -> D -> 2
This operator is extremely useful to move chains of nodes which are
located at the same place (for instance nodes part of a same stop).

.operations_research.OptionalBoolean use_relocate_neighbors = 3;

Returns

The enum numeric value on the wire for useRelocateNeighbors.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseRelocatePair()

com.google.ortools.util.OptionalBoolean com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseRelocatePair

(

)

Operator which moves a pair of pickup and delivery nodes to another
position where the first node of the pair must be before the second node
on the same path. Compared to the light_relocate_pair operator, tries all
possible positions of insertion of a pair (not only after another pair).
Possible neighbors for the path 1 -> A -> B -> 2 -> 3 (where (1, 3) are
first and last nodes of the path and can therefore not be moved, and
(A, B) is a pair of nodes):
  1 -> [A] ->  2  -> [B] -> 3
  1 ->  2  -> [A] -> [B] -> 3

.operations_research.OptionalBoolean use_relocate_pair = 2;

Returns

The useRelocatePair.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseRelocatePairValue()

int com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseRelocatePairValue

(

)

Operator which moves a pair of pickup and delivery nodes to another
position where the first node of the pair must be before the second node
on the same path. Compared to the light_relocate_pair operator, tries all
possible positions of insertion of a pair (not only after another pair).
Possible neighbors for the path 1 -> A -> B -> 2 -> 3 (where (1, 3) are
first and last nodes of the path and can therefore not be moved, and
(A, B) is a pair of nodes):
  1 -> [A] ->  2  -> [B] -> 3
  1 ->  2  -> [A] -> [B] -> 3

.operations_research.OptionalBoolean use_relocate_pair = 2;

Returns

The enum numeric value on the wire for useRelocatePair.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseRelocatePathGlobalCheapestInsertionInsertUnperformed()

com.google.ortools.util.OptionalBoolean com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseRelocatePathGlobalCheapestInsertionInsertUnperformed

(

)

The following operator relocates an entire route to an empty path and
then tries to insert the unperformed nodes using the global cheapest
insertion heuristic.

.operations_research.OptionalBoolean use_relocate_path_global_cheapest_insertion_insert_unperformed = 33;

Returns

The useRelocatePathGlobalCheapestInsertionInsertUnperformed.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseRelocatePathGlobalCheapestInsertionInsertUnperformedValue()

int com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseRelocatePathGlobalCheapestInsertionInsertUnperformedValue

(

)

The following operator relocates an entire route to an empty path and
then tries to insert the unperformed nodes using the global cheapest
insertion heuristic.

.operations_research.OptionalBoolean use_relocate_path_global_cheapest_insertion_insert_unperformed = 33;

Returns

The enum numeric value on the wire for useRelocatePathGlobalCheapestInsertionInsertUnperformed.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseRelocateSubtrip()

com.google.ortools.util.OptionalBoolean com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseRelocateSubtrip

(

)

Relocate neighborhood that moves subpaths all pickup and delivery
pairs have both pickup and delivery inside the subpath or both outside
the subpath. For instance, for given paths:
0 -> A -> B -> A' -> B' -> 5 -> 6 -> 8
7 -> 9
Pairs (A,A') and (B,B') are interleaved, so the expected neighbors are:
0 -> 5 -> A -> B -> A' -> B' -> 6 -> 8
7 -> 9

0 -> 5 -> 6 -> A -> B -> A' -> B' -> 8
7 -> 9

0 -> 5 -> 6 -> 8
7 -> A -> B -> A' -> B' -> 9

.operations_research.OptionalBoolean use_relocate_subtrip = 25;

Returns

The useRelocateSubtrip.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseRelocateSubtripValue()

int com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseRelocateSubtripValue

(

)

Relocate neighborhood that moves subpaths all pickup and delivery
pairs have both pickup and delivery inside the subpath or both outside
the subpath. For instance, for given paths:
0 -> A -> B -> A' -> B' -> 5 -> 6 -> 8
7 -> 9
Pairs (A,A') and (B,B') are interleaved, so the expected neighbors are:
0 -> 5 -> A -> B -> A' -> B' -> 6 -> 8
7 -> 9

0 -> 5 -> 6 -> A -> B -> A' -> B' -> 8
7 -> 9

0 -> 5 -> 6 -> 8
7 -> A -> B -> A' -> B' -> 9

.operations_research.OptionalBoolean use_relocate_subtrip = 25;

Returns

The enum numeric value on the wire for useRelocateSubtrip.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseRelocateValue()

int com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseRelocateValue

(

)

--- Inter-route operators ---
Operator which moves a single node to another position.
Possible neighbors for the path 1 -> 2 -> 3 -> 4 -> 5
(where (1, 5) are first and last nodes of the path and can therefore not
be moved):
  1 ->  3  -> [2] ->  4  -> 5
  1 ->  3  ->  4  -> [2] -> 5
  1 ->  2  ->  4  -> [3] -> 5
  1 -> [4] ->  2  ->  3  -> 5

.operations_research.OptionalBoolean use_relocate = 1;

Returns

The enum numeric value on the wire for useRelocate.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseShortestPathSwapActive()

com.google.ortools.util.OptionalBoolean com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseShortestPathSwapActive

(

)

Swaps active nodes from node alternatives in sequence. Considers chains
of nodes with alternatives, builds a DAG from the chain, each "layer" of
the DAG being composed of the set of alternatives of the node at a given
rank in the chain, fully connected to the next layer. A neighbor is built
from the shortest path starting from the node before the chain (source),
through the DAG to the node following the chain.

.operations_research.OptionalBoolean use_shortest_path_swap_active = 34;

Returns

The useShortestPathSwapActive.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseShortestPathSwapActiveValue()

int com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseShortestPathSwapActiveValue

(

)

Swaps active nodes from node alternatives in sequence. Considers chains
of nodes with alternatives, builds a DAG from the chain, each "layer" of
the DAG being composed of the set of alternatives of the node at a given
rank in the chain, fully connected to the next layer. A neighbor is built
from the shortest path starting from the node before the chain (source),
through the DAG to the node following the chain.

.operations_research.OptionalBoolean use_shortest_path_swap_active = 34;

Returns

The enum numeric value on the wire for useShortestPathSwapActive.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseSwapActive()

com.google.ortools.util.OptionalBoolean com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseSwapActive

(

)

Operator which replaces an active node by an inactive one.
Possible neighbors for the path 1 -> 2 -> 3 -> 4 with 5 inactive
(where 1 and 4 are first and last nodes of the path) are:
  1 -> [5] ->  3  -> 4 with 2 inactive
  1 ->  2  -> [5] -> 4 with 3 inactive

.operations_research.OptionalBoolean use_swap_active = 14;

Returns

The useSwapActive.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseSwapActiveValue()

int com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseSwapActiveValue

(

)

Operator which replaces an active node by an inactive one.
Possible neighbors for the path 1 -> 2 -> 3 -> 4 with 5 inactive
(where 1 and 4 are first and last nodes of the path) are:
  1 -> [5] ->  3  -> 4 with 2 inactive
  1 ->  2  -> [5] -> 4 with 3 inactive

.operations_research.OptionalBoolean use_swap_active = 14;

Returns

The enum numeric value on the wire for useSwapActive.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseTspLns()

com.google.ortools.util.OptionalBoolean com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseTspLns

(

)

TSP-base LNS.
Randomly merges consecutive nodes until n "meta"-nodes remain and solves
the corresponding TSP.
This defines an "unlimited" neighborhood which must be stopped by search
limits. To force diversification, the operator iteratively forces each
node to serve as base of a meta-node.

.operations_research.OptionalBoolean use_tsp_lns = 18;

Returns

The useTspLns.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseTspLnsValue()

int com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseTspLnsValue

(

)

TSP-base LNS.
Randomly merges consecutive nodes until n "meta"-nodes remain and solves
the corresponding TSP.
This defines an "unlimited" neighborhood which must be stopped by search
limits. To force diversification, the operator iteratively forces each
node to serve as base of a meta-node.

.operations_research.OptionalBoolean use_tsp_lns = 18;

Returns

The enum numeric value on the wire for useTspLns.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseTspOpt()

com.google.ortools.util.OptionalBoolean com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseTspOpt

(

)

Sliding TSP operator.
Uses an exact dynamic programming algorithm to solve the TSP
corresponding to path sub-chains.
For a subchain 1 -> 2 -> 3 -> 4 -> 5 -> 6, solves the TSP on
nodes A, 2, 3, 4, 5, where A is a merger of nodes 1 and 6 such that
cost(A,i) = cost(1,i) and cost(i,A) = cost(i,6).

.operations_research.OptionalBoolean use_tsp_opt = 10;

Returns

The useTspOpt.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseTspOptValue()

int com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseTspOptValue

(

)

Sliding TSP operator.
Uses an exact dynamic programming algorithm to solve the TSP
corresponding to path sub-chains.
For a subchain 1 -> 2 -> 3 -> 4 -> 5 -> 6, solves the TSP on
nodes A, 2, 3, 4, 5, where A is a merger of nodes 1 and 6 such that
cost(A,i) = cost(1,i) and cost(i,A) = cost(i,6).

.operations_research.OptionalBoolean use_tsp_opt = 10;

Returns

The enum numeric value on the wire for useTspOpt.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseTwoOpt()

com.google.ortools.util.OptionalBoolean com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseTwoOpt

(

)

--- Intra-route operators ---
Operator which reverses a subchain of a path. It is called TwoOpt
because it breaks two arcs on the path; resulting paths are called
two-optimal.
Possible neighbors for the path 1 -> 2 -> 3 -> 4 -> 5
(where (1, 5) are first and last nodes of the path and can therefore not
be moved):
  1 -> [3 -> 2] -> 4  -> 5
  1 -> [4 -> 3  -> 2] -> 5
  1 ->  2 -> [4 -> 3] -> 5

.operations_research.OptionalBoolean use_two_opt = 7;

Returns

The useTwoOpt.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

getUseTwoOptValue()

int com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperatorsOrBuilder.getUseTwoOptValue

(

)

--- Intra-route operators ---
Operator which reverses a subchain of a path. It is called TwoOpt
because it breaks two arcs on the path; resulting paths are called
two-optimal.
Possible neighbors for the path 1 -> 2 -> 3 -> 4 -> 5
(where (1, 5) are first and last nodes of the path and can therefore not
be moved):
  1 -> [3 -> 2] -> 4  -> 5
  1 -> [4 -> 3  -> 2] -> 5
  1 ->  2 -> [4 -> 3] -> 5

.operations_research.OptionalBoolean use_two_opt = 7;

Returns

The enum numeric value on the wire for useTwoOpt.

Implemented in com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators, and com.google.ortools.constraintsolver.RoutingSearchParameters.LocalSearchNeighborhoodOperators.Builder.

---

The documentation for this interface was generated from the following file:

• build/java/ortools-java/src/main/java/com/google/ortools/constraintsolver/RoutingSearchParameters.java
