operations_research::math_opt::IndicatorConstraint Class Reference

#include <indicator_constraint.h>

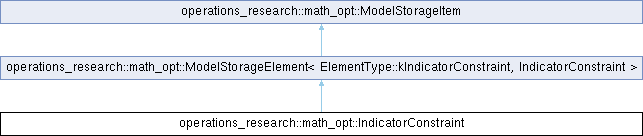

Inheritance diagram for operations_research::math_opt::IndicatorConstraint:

Public Member Functions
absl::string_view	name () const
std::optional< Variable >	indicator_variable () const
bool	activate_on_zero () const
	The value the indicator variable takes to activate the implied constraint.
BoundedLinearExpression	ImpliedConstraint () const
std::vector< Variable >	NonzeroVariables () const
std::string	ToString () const
	ModelStorageElement (ModelStorageCPtr storage, IdType id)
	ModelStorageElement (const ModelStorageElement &)=default
	ModelStorageElement (ModelStorageElement &&)=default
Public Member Functions inherited from operations_research::math_opt::ModelStorageElement< ElementType::kIndicatorConstraint, IndicatorConstraint >
	ModelStorageElement (ModelStorageCPtr storage, IdType id)
int64_t	id () const
IdType	typed_id () const
Public Member Functions inherited from operations_research::math_opt::ModelStorageItem
ModelStorageCPtr	storage () const

Additional Inherited Members
Public Types inherited from operations_research::math_opt::ModelStorageElement< ElementType::kIndicatorConstraint, IndicatorConstraint >
using	IdType
	The typed integer used for ids.
Protected Member Functions inherited from operations_research::math_opt::ModelStorageElement< ElementType::kIndicatorConstraint, IndicatorConstraint >
ModelStorageElement &	operator= (const ModelStorageElement &)=default
	~ModelStorageElement ()=default
Protected Member Functions inherited from operations_research::math_opt::ModelStorageItem
	ModelStorageItem (ModelStorageCPtr storage)
	ModelStorageItem (const ModelStorageItem &)=default
ModelStorageItem &	operator= (const ModelStorageItem &)=default
	ModelStorageItem (ModelStorageItem &&)=default
ModelStorageItem &	operator= (ModelStorageItem &&)=default
	~ModelStorageItem ()=default

Detailed Description

A value type that references an indicator constraint from ModelStorage. Usually this type is passed by copy.

Definition at line 34 of file indicator_constraint.h.

Member Function Documentation

activate_on_zero()

bool operations_research::math_opt::IndicatorConstraint::activate_on_zero ( ) const

inline

The value the indicator variable takes to activate the implied constraint.

Definition at line 82 of file indicator_constraint.h.

ImpliedConstraint()

BoundedLinearExpression operations_research::math_opt::IndicatorConstraint::ImpliedConstraint

(

)

const

Note

The following makes a copy of data.linear_terms. This can be made more efficient if the need arises.

Definition at line 27 of file indicator_constraint.cc.

indicator_variable()

std::optional< Variable > operations_research::math_opt::IndicatorConstraint::indicator_variable ( ) const

inline

Returns nullopt if the indicator variable is unset (this is a valid state, in which the constraint is functionally ignored).

Definition at line 73 of file indicator_constraint.h.

ModelStorageElement() [1/3]

operations_research::math_opt::ModelStorageElement< element_type, Derived, generate_equality >::ModelStorageElement ( const ModelStorageElement & )

default

Disallow slicing (https://isocpp.github.io/CppCoreGuidelines/CppCoreGuidelines#Rc-copy-virtual):

ModelStorageElement() [2/3]

operations_research::math_opt::ModelStorageElement< element_type, Derived, generate_equality >::ModelStorageElement ( ModelStorageCPtr storage, IdType id )

inline

Definition at line 81 of file model_storage_item.h.

ModelStorageElement() [3/3]

operations_research::math_opt::ModelStorageElement< element_type, Derived, generate_equality >::ModelStorageElement ( ModelStorageElement && )

default

name()

absl::string_view operations_research::math_opt::IndicatorConstraint::name ( ) const

inline

Inline function implementations

Definition at line 66 of file indicator_constraint.h.

NonzeroVariables()

std::vector< Variable > operations_research::math_opt::IndicatorConstraint::NonzeroVariables ( ) const

inline

Returns all variables that appear in the indicator constraint with a nonzero coefficient. Order is not defined.

Definition at line 86 of file indicator_constraint.h.

ToString()

std::string operations_research::math_opt::IndicatorConstraint::ToString

(

)

const

Returns a detailed string description of the contents of the constraint (not its name, use << for that instead).

Definition at line 36 of file indicator_constraint.cc.

---

The documentation for this class was generated from the following files:

• ortools/math_opt/constraints/indicator/indicator_constraint.h
• ortools/math_opt/constraints/indicator/indicator_constraint.cc
